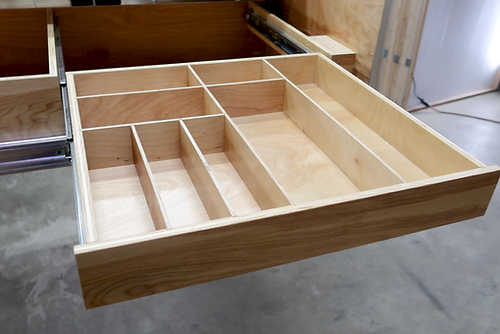

Full 3D CAD model for the CRUNK Drawers kitchen unit, which accommodates a 2 burner stove, grill/griddle from Greystone, and 3/4" cutting board. Includes a silverware drawer with dividers.


Modeled to be constructed of 1/2" nominal plywood (4 sheets), actual thickness is 15/32". Silverware dividers will be constructed of 1/4" nominal plywood, actual thickness is 3/16". Recommended plywood is PureBond® Birch Plywood or Baltic Birch. Full cut list, materials list, and build notes are included.


CAD format is SketchUp .skp; the program can be downloaded for free for personal use. Refer to the video tutorial above for instructions on how to use this software! This is not a step-by-step build guide. Woodworking and/or carpentry experience is required.


This model, and all associated intellectual property is sold under a personal use license, for the sole use of the purchaser, for personal use only. Commercial use or reselling is prohibited. As this is a digital product, all sales are final.


Finished dimensions are 61" x 16" x 24".

CRUNK Drawers 3D CAD Model
